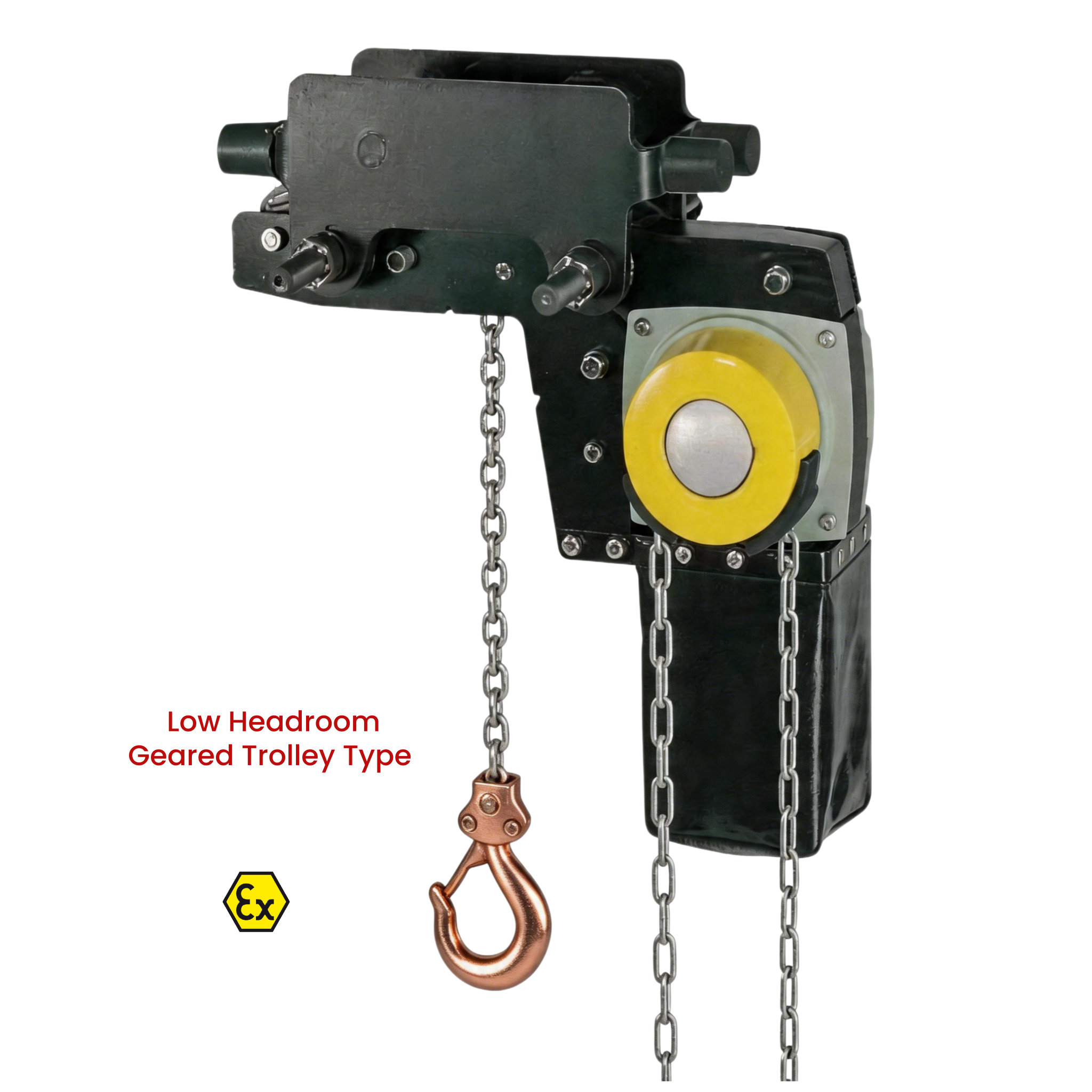

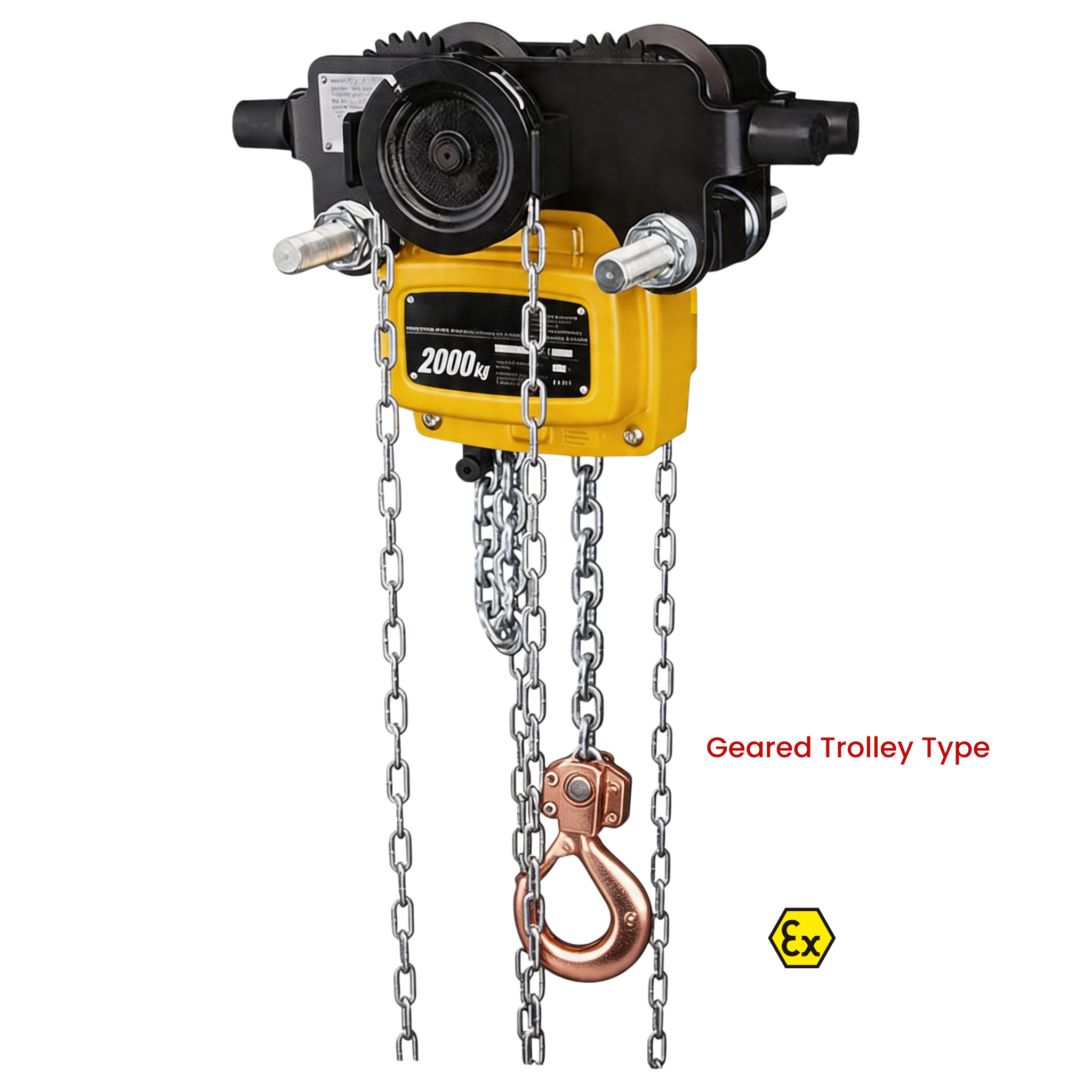

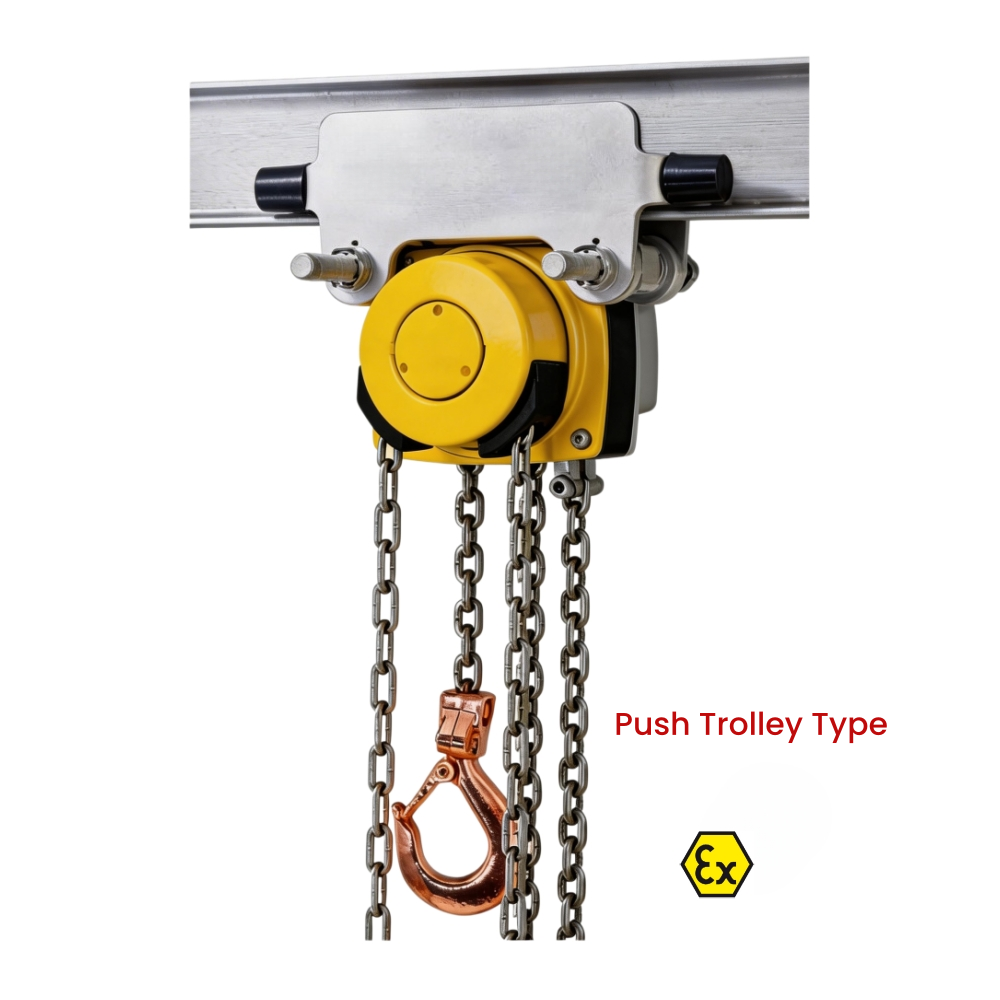

ATEX Beam Trolley

This Manual hand chain hoist designed for use in potentially explosive atmospheres, suitable for harsh industrial environments.
Equipped with 360° rotating hand chain guide for operation from virtually any angle, ideal for confined spaces.
Features extremely low headroom design to maximize usable lifting height.

• 360° rotating hand chain guide enables operation from virtually any position.
• Extremely low headroom design maximizes usable lifting height.
• Enclosed robust stamped steel housing protects internal components.
• Weston-style braking system provides positive load control and reliable performance.
• Heat-treated steel gears ensure high strength and long service life.
• Precision 4-pocket lift wheel ensures accurate chain fit and reduced wear.
• Drop-forged high-tensile steel hooks rotate 360° and yield under overload.
• Hand chain wheel equipped with cooling element to control surface temperature.
• MKS micro corrosion protection system provides high corrosion resistance.

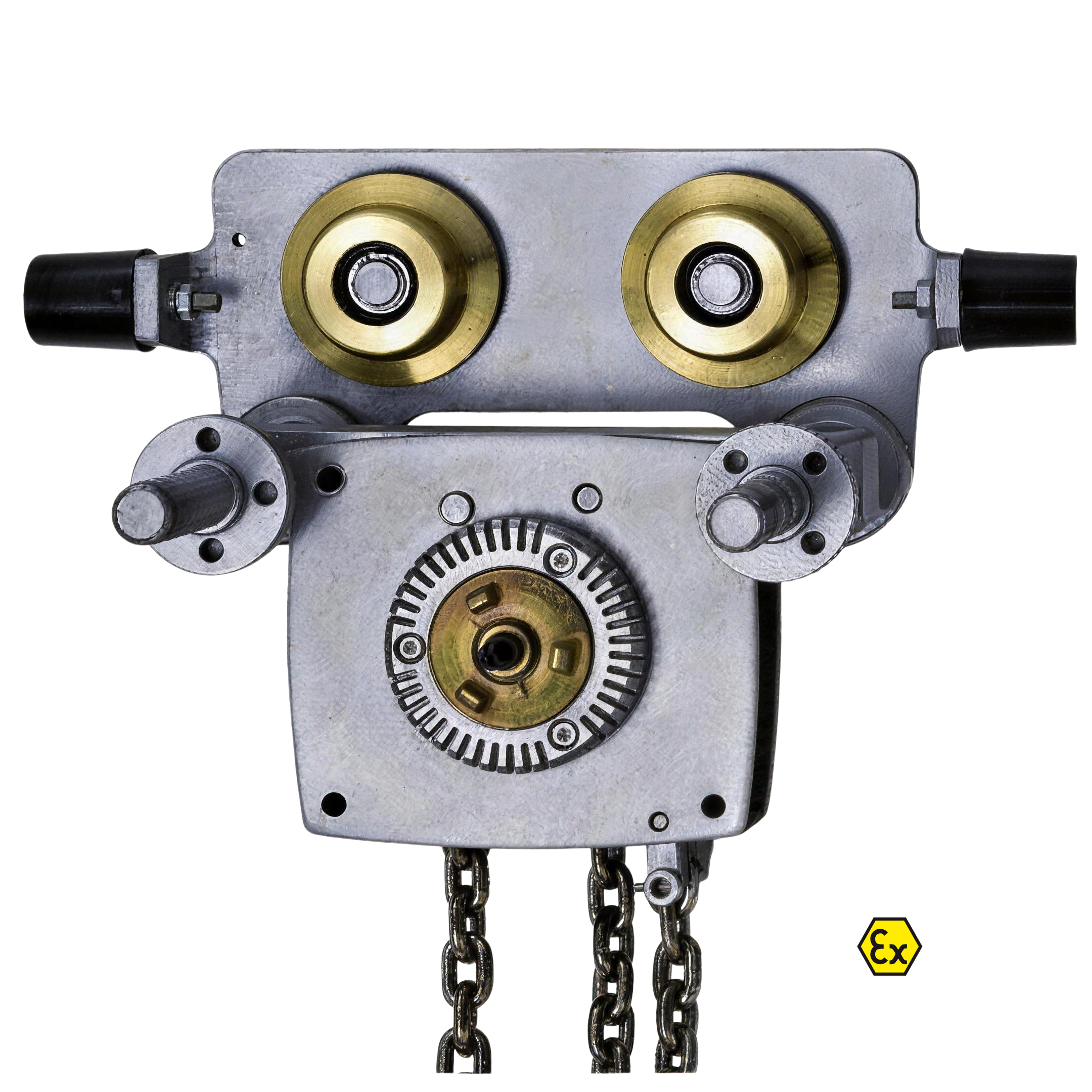

• Bronze trolley wheels and rubber buffers prevent mechanical sparks.
• Chain guide and gearbox are fully enclosed for harsh environment protection.
• Maintenance friendly; easily disassembled without special tools.

1/4 ton, 1/2 ton & 1 ton:
• A=335mm, B=22mm, C=29mm, D=156mm, E=175mm, F=167mm, G=164mm, H=242mm, I=24mm, K=70mm, L=97mm, M=125mm, N=19mm.
• Hook Throat: 0.87 in / 22mm;
• Latch Opening: 1.14 in / 29mm;
• Latch Clearance: 0.75 in / 19 mms;
• Latch Free Travel: 0.24 in / 6 mm;
• Bale Pin Diameter: 0.59 in / 15 mm.

1 1/2 ton & 2 ton:
• A=520mm, B=38mm, C=40mm, D=220mm, E=250mm, F=219mm, G=225mm, H=335mm, I=34mm, K=95mm, L=124mm, M=178mm, N=30mm.
• Hook Throat: 1.50 in / 38 mm;
• Latch Opening:1.58 in / 40 mm;
• Latch Clearance:1.18 in / 30 mm;
• Latch Free Travel:0.43 in / 11 mm;
• Bale Pin Diameter:0.87 in / 22 mm.

3 ton & 4 ton:
• A=654mm, B=45mm, C=47mm, D=220mm, E=250mm, F=219mm, G=242mm, H=352mm, I=21mm, K=95mm, L=124mm, M=285mm, N=37mm.
• Hook Throat: 1.77 in / 45 mm;
• Latch Opening:1.85 in / 47 mm;
• Latch Clearance:1.46 in / 37 mm;
• Latch Free Travel:0.47 in / 12 mm;
• Bale Pin Diameter:1.10 in / 28 mm.

5 ton & 6 ton:
• A=825mm, B=68mm, C=68mm, D=220mm, E=383mm, F=219mm, G=326mm, H=436mm, I=136mm, K=95mm, L=124mm, M=401mm, N=50mm.
• Hook Throat: 2.68 in / 68 mm;
• Latch Opening: 2.68 in / 68 mm;
• Latch Clearance:1.97 in / 50 mm;
• Latch Free Travel:0.67 in / 17 mm;
• Bale Pin Diameter:1.38 in / 35 mm.

8 ton, 10 ton & 12 ton:
• A=1010mm, B=85mm, C=64mm, D=303mm, E=555mm, F=250mm, G=391mm, H=501mm, K=396mm, L=125mm, M=471mm, N=56mm.
• Hook Throat:3.35 in / 85 mm;
• Latch Opening:2.52 in / 64 mm;
• Latch Clearance:2.21 in / 56 mm;
• Latch Free Travel: 0.51 in / 13 mm;
• Bale Pin Diameter:1.77 in / 45 mm.
